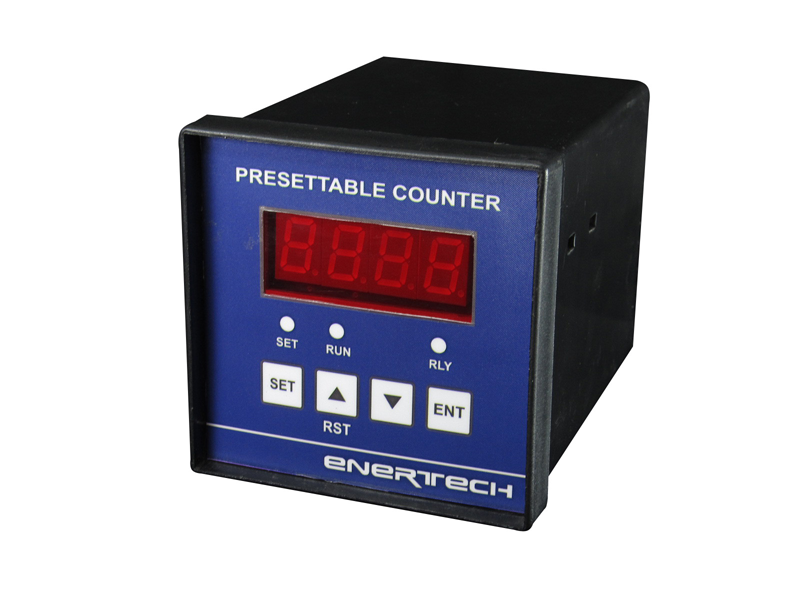

Presettable Counter

View PDF

Key fetures

  • RISC Microcontroller based field proven design
  • Durable
  • 4 digit bright LED display
  • Trip count user settable
  • 4 key keyboard
  • LED Indication for relay
  • LED indications for SET & RUN mode
  • Totalizer
  • Memory retention of count & totalizer
  • Manual Resetting
  • Max count 9999
  • Output relay 1 C/0 5 A at 230 VAC

Technical Specifications

Input Voltage From Phases R, Y
Input NPN/PNP Proximity Switch
Auxiliary Supply 230 VAC +/- 10 %
Resolution 1 count
Enclosure ABS Plastic
Size 96 X 96 X 110 mm
Panel Cutout 92 X 92 mm
