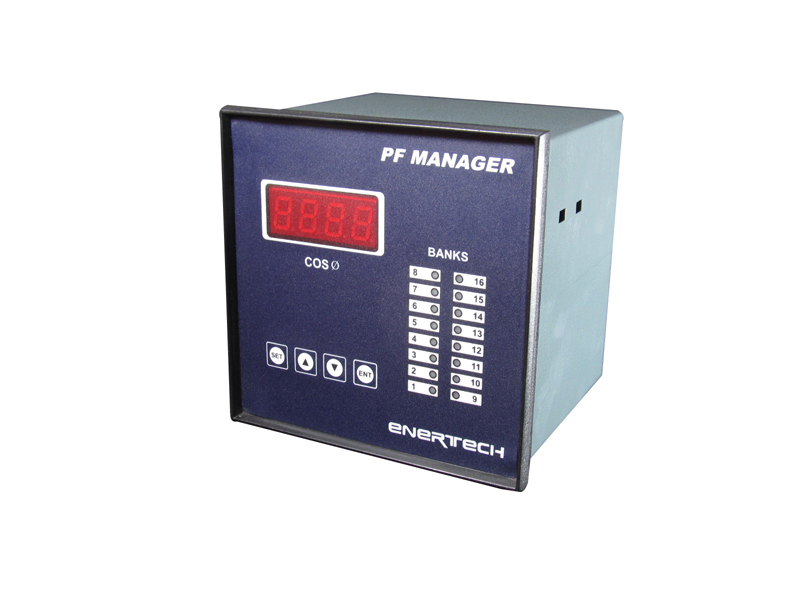

PF Manager

View PDF

Key fetures

  • RISC Microcontroller based field proven design
  • Three digit PF display
  • Individual Stage LED indications
  • Maximum upto 15 stages
  • Low PF Alarm
  • Indication range from 0.5 lag to 0.5 lead
  • User settable High and Low set points also in three digit
  • User settable bank on time, bank off time, bank discharge time
  • Settable Cyclic or FIFO switching sequence
  • Settable No Load Compensation (NLC)For Transformer
  • Auto or Man Mode Selectable from switch
  • For all settings the controller is protected by a password to avoid unauthorized access
  • Test mode for testing the wiring logic when there is no load current
  • Input voltage from phases R & Y
  • Input Current from phase B CT
  • All Electrical Connections on rear side
  • Potential free relay contact outputs to operate the banks

Technical Specifications

Input Voltage From Phases R, Y
Input Current From CT / 5 A in B phase
Relay Contacts 5 A at 230 VAC
Enclosure Sheet metal door mounting
Size 144 X 144 X 120 mm
Panel Cutout 138 X 138 mm
