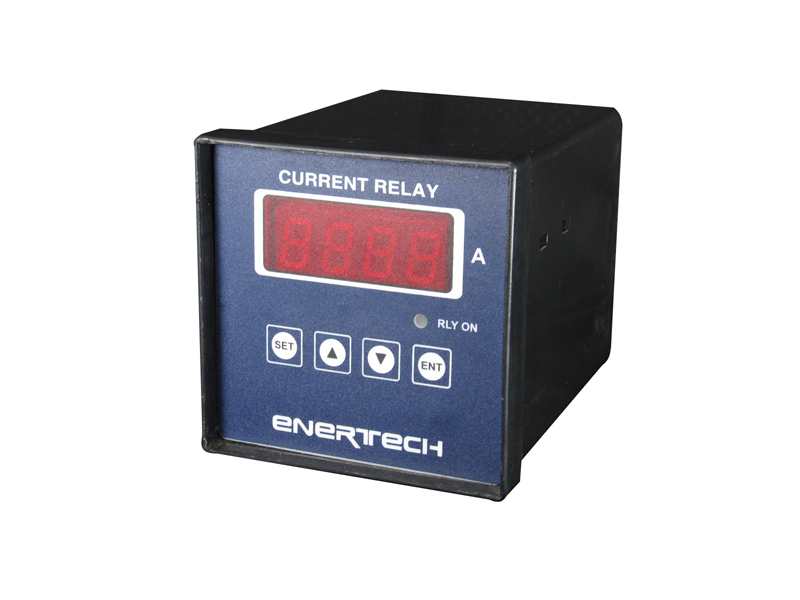

Current Relay

View PDF

Key fetures

  • RISC microcontroller based design
  • Durable
  • 4 digit bright LED display
  • CT Ratio user settable
  • Hi and Lo set points
  • 4 key keyboard
  • LED Indication for relay
  • Hysterisis, tripping time settable
  • Reset Auto or Manual settable
  • Output relay 1 C/0 5 A at 230 VAC

Technical Specifications

Input Current 5 Amps Max
Auxiliary Supply 230 VAC +/- 10%
Accuracy ± 1º
Resolution 1 Amp
Enclosure ABS Plastic
Size 96 X 96 X 110 mm
Panel Cutout 92 X 92 mm
